WL600 碳纤维剑杆织机技术指标:

WL600是一款专业织造碳纤维布的织机，可以织造经纬向均为纤维的方格布、箱包布等，也可以织造径向为碳纤维、纬向为热熔丝的碳纤维单向布，集碳纤维放丝、织造、热定型、布卷成型于一体。主要技术要求:

1、纤维纱线适用范围:1K、3k、6k、12K、24K、25K.

2、门幅规格:150CM、190CM、230CM.

3、选色:单色或2色及以上，

4、开口机构:电子多臂，适用于复杂组织结构，也可配踏盘，适用于简单组织结构。

5、送经:电子送经，送经均匀，张力稳定。

6、卷取:电子卷取，纬密精确到0.1纬/厘米，范围:0.8-20纬/厘米。

7、卷绕成型:成品端面整齐，卷装直径最大800mm。

8、自动寻纬:断纬纱后可以实现一键自动寻纬倒综，确保纬密均匀，避免停车档产生，

9、设备润滑:喷淋润滑、油浴润滑、油嘴加油润滑，

10、自动控制:织机速度变频调节、具有定位停车、定位开车、断经自停、断纬自停等功能.

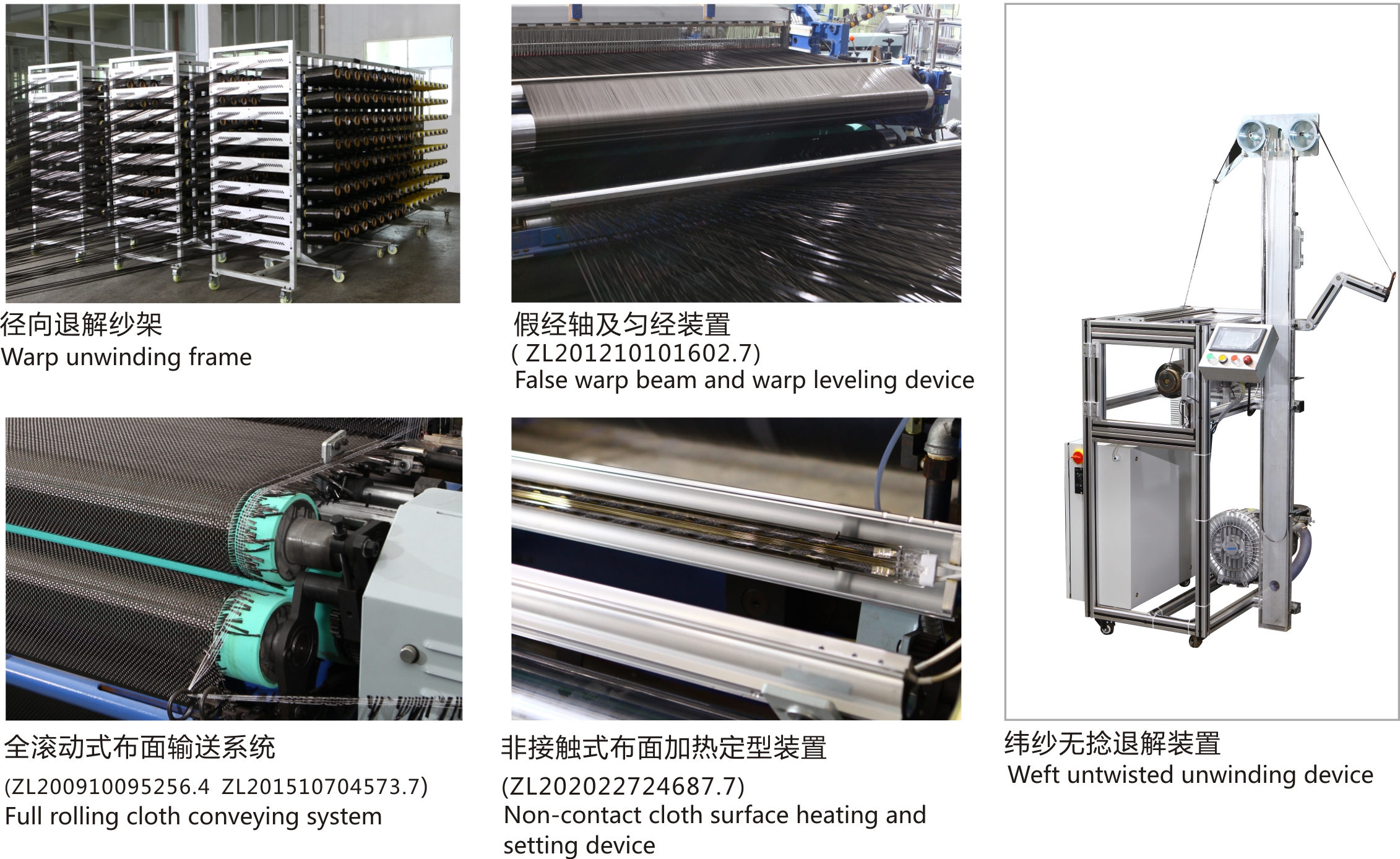

11、纱架:径向退解，退解张力由弹簧调节,

12、纬纱:径向退解、同服电机驱动纬纱退解、采用空气负压均衡纬纱张力。

13、主电机功率:5.5KW或4.0KW

WL600 CARBON FIBRE RAPIER LOOM TECHNICAL DATA:

WL600 carbon fiber rapier loom is a professional weaving machine for carbon fibercloth. lt can weave square cloth, luggage cloth, etc. with carbon fiber in the warp and weftdirections, and can also weave carbon fiber sheets with carbon fiber in the radial directionand thermal use in the weft direction. Directional fabric, which integrates carbon fiber weftand weaving, weaving, heat setting, and roll forming.Main technical requirements:

1.Scope ofapplication of fiber yarn: 1K,3k, 6k,12K,24K,25K.
2.Width specification: 150CM, 190CM, 230CM.
3.Color selection: single color or 2 colors and above.

4.Opening mechanism: Electronic dobby, suitable for complex organizational structures.
5.Let-off: Electronic let-off, uniform tension and stable let-off.
6.Take-up: Electronic take-up, the weft density is accurate to 0.1 wefucm. Windingforming: the end face of the finished product is neat, and the maximum diameter of thepackage is 800mm.

7. Automatic weft-seeking: After the weft yarn is broken, one-key automatic weft-seekingand rewinding function can be realized to ensure uniform weft density.

8. Equipment lubrication: spray lubrication, oil bath lubrication, oil nozzle lubrication.

9. Automatic control: the loom speed is adjusted by frequency conversion, with functionssuch as positioning stop, positioning start, warp breaking automatic stop, and weft breakingautomatic stop.

10. Creel: radial unwinding, the unwinding tension is adjusted by spring.
11. Weft yarn: radial unwinding, servo motor driven weft yam unwinding, and air negativepressure to balance weft yarn tension.

12.Main motor power: 5.5Kyy or 4.0KW.
